Commutation Encoder Offers Flexibility

By Miles Budimir | April 2, 2010

Share

CUI Inc announced a new addition to its high resolution, low-cost AMT encoder line with the AMT303 series. The encoder generates standard U/V/W commutation signals for vectoring current to brushless motors. Resolutions can be set through the AMT303’s SPI (Serial Peripheral Interface). Commutation output can accommodate brushless motors with 2, 4, 6, 8 or 10 pole pairs, and is also selectable via the SPI. The AMT303 offers supplementary incremental A, B, and Z channels for various servo positioning and startup sequences. Additional options include nine mounting patterns and ten bore sizes, creating a flexible platform that is able to mate with many industry standard motors.

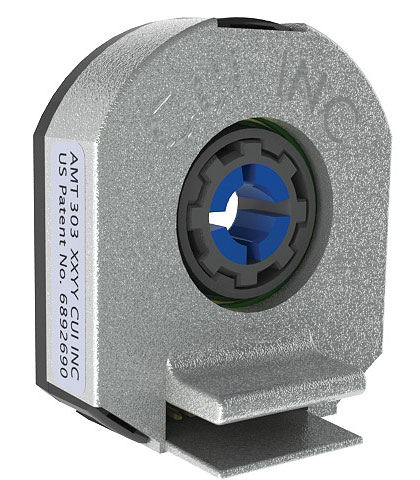

CUI-AMT-303-encoder

The AMT303 generates position information using CUI’s patented, capacitive code generation system coupled with a proprietary ASIC. This technology is immune to environmental particulates and magnetic interference, creating a reliable, economical and stable control and positioning solution. The encoder consumes a maximum 10 mA at 5 Vdc, making it ideal for any application where power consumption is a concern.

The AMT303’s SPI affords higher throughput and simpler hardware interfacing than I²C or SMBus. Utilizing TCL code, the on-board PIC 16F690 MCU operates at up to 10MHz providing for high speed applications. Zero position may be set by SPI command or ground trigger, removing the need for time consuming mechanical alignment in the mounting process. Additionally, an onboard EEPROM can store up to 128 bytes of customer data. A demo board is available for stand-alone demonstration, PC access to SPI interface and example TCL code.

CUI, Inc.
www.cui.com


Filed Under: Encoders • optical, Motion control • motor controls
Tagged With: cuiinc
