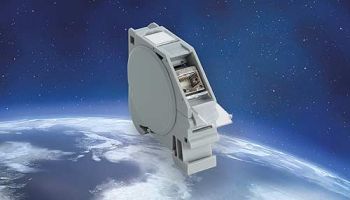

The new LÜTZE Cat. 6A module carriers allow data transmission points between the field and control cabinet to be performed even more quickly and safely. Core benefits of the module carrier include the greatly simplified wiring process that does not require special tools. Pluggable PROFINET or Ethernet connections can be created in just a few simple steps and 30% more quickly than when conventional module carriers are used. It is possible to create secure data connections quickly and easily, even in poor ambient conditions, e.g. for installations in the field or in tight spaces in control cabinets. Also, the power supply can also be provided via Power over Ethernet Plus (PoE+).
The eight-pole module carrier is tested according to IEC 60512-24-1200 and conforms to 10 Gigabit Ethernet via IEEE 802.3an. Conductor gauges of AWG 26/1 to AWG 22/1 and also AWG 27/7 to AWG 22/7 can be connected. Even fewer flexible cables with a diameter of up to 9 mm can be connected securely with good shield termination and optimized permanent strain relief.
The RJ45 bushing socket in the standardized Keystone-Snap-In format has an additional potential connection designed as a functional earth according to DIN 46342-1. The gold-plated contacts can be loaded with a maximum rated current of 1 A/contact and are designed for up to 750 insertion cycles.
The LÜTZE module carrier meets flammability rating V0 as per UL94 and can be used in a work temperature range of -40 to +70°C. When disconnected, the transparent folding lid prevents soiling of the contacts on the RJ45 bushing socket according to protection rating IP 20. Due to the narrow housing width of 18 mm (without side covers), several module carriers can sit next to one another on a TS 35 mounting rail to save space. The delivery scope includes a white ID plate having dimensions of 13×13 mm.
The LÜTZE module holder satisfies the industrial requirements of Class EA according to ISO/IEC 11801:2002 and EN 50173-1.
