Power connectors according to IEC 60320, C22 & C21 @ 1550C for elevated ambient temperature

By Frank Tobe | December 19, 2014

Share

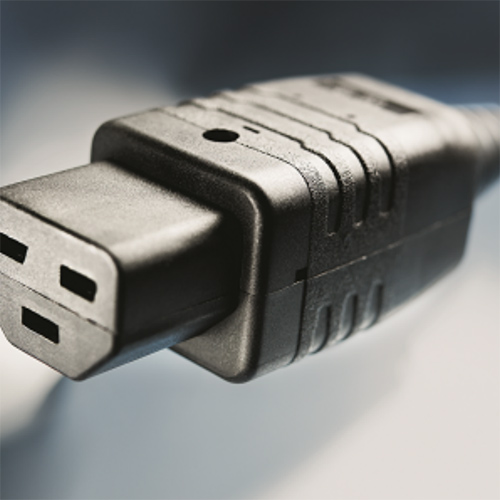

SCHURTER introduces its high temperature cord connectors to extend its range of IEC high temperature power inlets according to IEC/UL 60320. The high temperature appliance inlet and cord connectors are designed according to IEC. They are rated according to IEC for 16 A at 250 VAC, and 20 A at 250 VAC according to UL / CSA. Pin temperature may reach a maximum of 155°C, as defined by the IEC styles C22 & C21.

The high temperature appliance inlet, series 1681, offers variations for snap-in or screw-on mounting. The inlet can be specified with terminals for solder, quick-connect or screw connections. The inlet is also available with an EMC filter, series C22F. The cord connector comes in a straight, series 1658, and an angled, series 1659, design. Cables with a conductor cross-section of up to 2.5 mm2 or 10 AWG can be used.

SCHURTERThe IEC high temperature appliance inlet and the cord connectors are ENEC, UL/CSA and CCC approved, and meet environmental standards for RoHS and CHINA-ROHS compliance. They are used in equipment that operates in elevated ambient temperatures and/or with high currents. Applications include datacom equipment, where increased power and decreased size are trending, as well as portable industrial equipment such as heating systems. The appliance inlet and cord connectors also meet the requirements of IEC 60335-1 for household appliances, which covers enhanced requirements of glow wire tests for unattended household appliances according to IEC 60695-2-12 and -13.

Pricing for the inlet, 1681, starts at just $1.88 each per 100 pieces and the connectors starting at $4.62 each per 100 pieces. Packaging is 50 pieces per box.

Schurter
www.schurter.com


Filed Under: TECHNOLOGIES + PRODUCTS, Connectors (electrical) • crimp technologies
Tagged With: Schurter
