Sophisticated ultrasonic welder solves difficult problems

By Lisa Eitel | December 28, 2015

Share

Herrmann Ultrasonics Inc. has worked with medical company Genicon to build one of the largest ultrasonic medical weld tools ever designed. The product being welded — a newly designed suction irrigation handle — which was shown by Genicon at the recent MEDICA 2015 tradeshow in Germany. More after the jump.

The device in its entirety is used for liposuction. Due to the size of the joining partners and their three dimensional shape this application was very challenging – especially the 12 mm difference in contour heights which needed to be matched by the contact surface of the weld tool, called sonotrode. The team at Herrmann made it work with a 220 x 180-mm aluminum sonotrode.  More after the jump.

This is the MEDIALOG welder for cleanroom environments.

To meet the increasing requirements for ultrasonic assembly processes in sterile environments. Together with stainless steel, cleanroom-friendly surfaces and modified pneumatics the MEDIALOG includes the unique operator interface FSC. This stands for FDA System Component and meets the demanding requirements FDA CFR 21 part 11 of the Food and Drug Administration. FSC includes a complete documentation all actions performed by authorized users and records time stamped audit trails. The creation of customized individual access authorization in combination with electronic signatures ensures authenticity, completeness and confidentiality of all data.

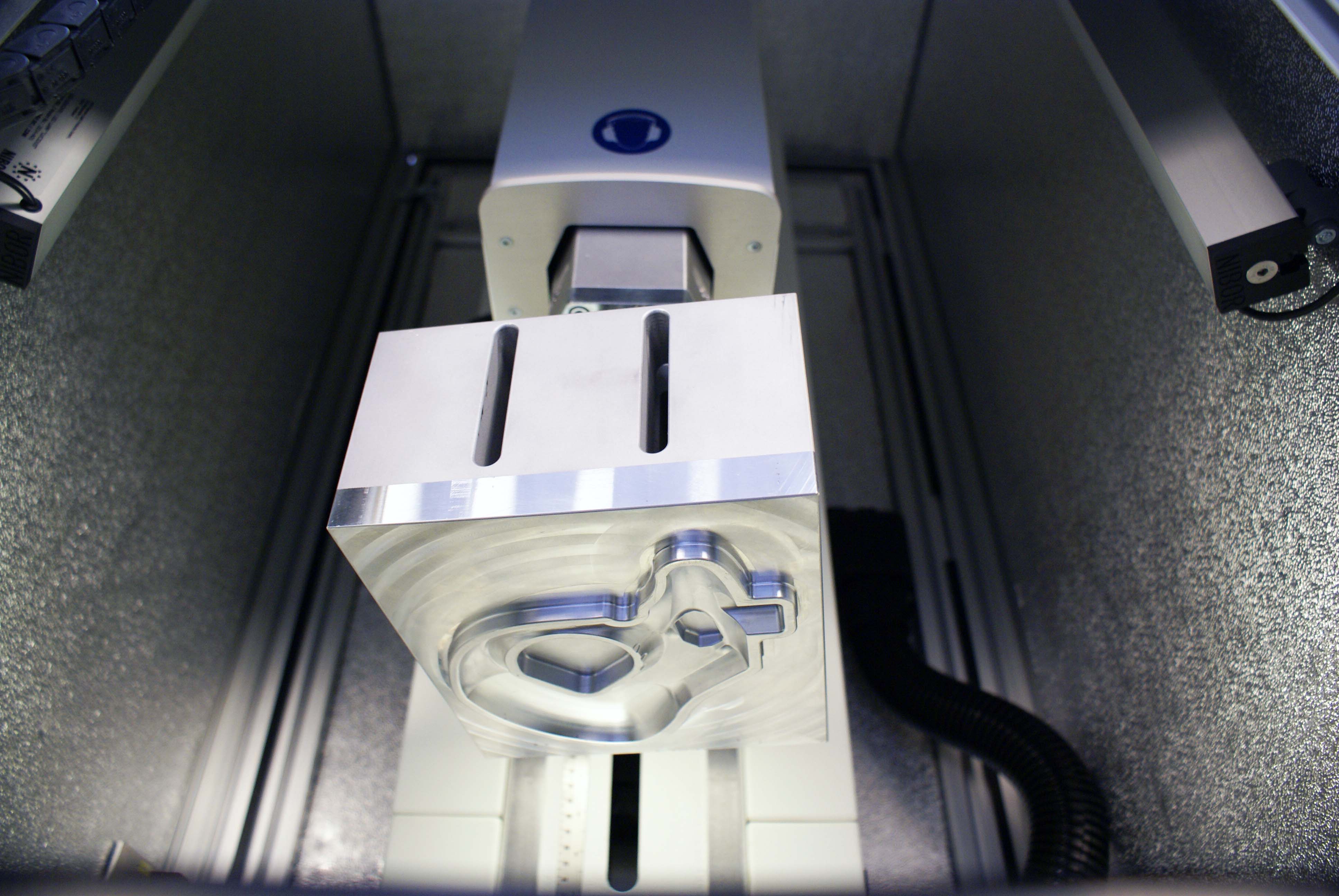

This picture shows the contact area of the sonotrode (weld tool).

Visit Hermann Ultrasonics in booth #3141 during the MD&M WEST 2016 — Feb. 9 to 11, 2016 — to see the HiQ MEDIALOG and to find out more details about ultrasonic welding.
