Applied Materials, Inc. is pioneering a new era in photovoltaic (PV) research and development with the opening of its SunFab Technology Center, one of the industry’s most advanced facilities dedicated to next generation solar technology applications. The 2,000m2 center, located in Alzenau, Germany, features state-of-the-art solar module manufacturing equipment, including Applied Materials’ PECVDa and ATON™ PVDa systems, laser tools and fab automation software. It includes a complete sequence of equipment that is representative of the Applied SunFab™ Thin Film Line for large-volume manufacturing of solar circuits.

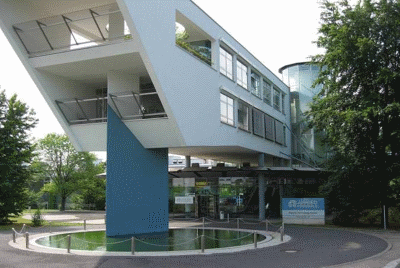

Applied Materials SunFab Technology Center Alzenau, Germany
The facility will serve as Applied Materials’ principal solar research and development center with a focus on boosting module conversion efficiency and lowering production costs. In addition, the facility will provide customers with the capability to evaluate and test key systems and processes, and will enhance the existing crystalline silicon and thin film manufacturing capabilities in the region.
“The SunFab Technology Center reflects Applied Materials’ confidence in the growth of the solar industry around the world,” said Winfried Hoffmann, chief technology officer, Applied Materials Solar Business Group. “Located in Germany, where Applied Materials employs more than 400 people, the SunFab Center will leverage the expertise and highly skilled talent in the region as well as serve as a center of excellence to attract worldwide solar talent.”
