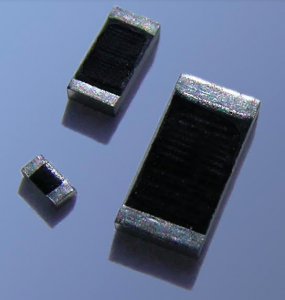

The UHV Series of ultra-high voltage chip resistors from Stackpole are now in stock in the most popular sizes and resistance values. Values of 500M, 1G, and 2G are in stock in sizes from 2010 to 5020. This enables designing and prototyping high voltage designs in far less time than usual.
Full resistance range for the UHV Series is from 100 Megohm up to 10 Gigohm in TCR of 100 ppm and tolerances as low as 1%. The UHV typically offers untrimmed resistive elements for 10% tolerances and wider which provide the best stability over life testing and extremely low VCR. The outstanding working voltage ratings for the UHV are as follows:
* UHV2010 rated up to 6KV
* UHV2512 rated up to 10KV
* UHV3512 rated up to 12KV
* UHV4020 rated up to 16KV
* UHV5020 rated up to 20KV
The UHV Series is ideal for high voltage medical applications, voltage dividers, high voltage power supplies, avionics and aerospace, industrial equipment, and telecom infrastructure and equipment.
Pricing for the UHV depends on size, resistance value, tolerance and TCR. Contact Stackpole or one of our franchised distribution partners for specific pricing.
