Oldham couplings accommodate large amounts of parallel misalignment with light bearing loads. The three-piece design is comprised of two hubs and a floating center disc, which comes in acetal for high torsional stiffness or nylon for shock absorption and vibration dampening.
They also handle small amounts of angular misalignment and axial motion. The couplings have electrical isolation, mechanical fuse properties, and are relatively low in cost. They come in seven sizes of set-screw or clamp-style hubs, with bores from 1/8 in. (3 mm) to 2 1/4 in. (57 mm). The anodized hubs improve lubricity and increase life.

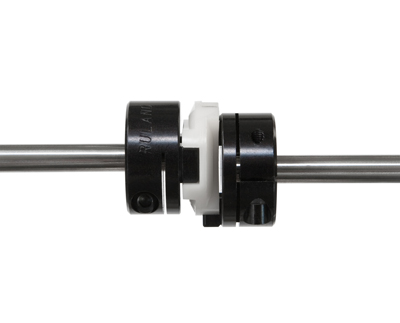

Ruland oldham coupling with nylon disc on shaft, showing parallel misalignment.
Direct link to product: www.ruland.com/ps_couplings_oldham.asp
Ruland Manufacturing Co., Inc.
Ruland Manufacturing Co., Inc. has been a precision manufacturer since 1937. Ruland’s focus for the past 40 years has been on high performing shaft collars and couplings. The complete line of products includes shaft collars and rigid couplings, and a full line of motion control couplings: beam couplings, bellows couplings, oldham couplings, miniature disc couplings, and zero backlash jaw couplings.
