CIT Relay & Switch A17 Series Relay

By Stacy Combest | August 16, 2012

Share

The CIT Relay & Switch A17 Series is a robust automotive relay in a small package. The A17 offers plug-in styling with maximum current rating of 20A. This sealed relay is single pole single throw with coil suppression options of resistor or diode.

Contact arrangement is 1A SPST N.O. with contact rating of [email protected] 14VDC N.O. Contact resistance is less than 50 milliohms; contact material is AgSnO2. Tested electrical life of the A17 Series is 100k cycles with mechanical life of 10M cycles. The dielectric strength is 750Vrms minimum coil to contact and 500Vrms minimum contact to contact.

Insulation resistance is 100MΩ minimum at 500VDC. Shock resistance is 98m/s2 for 11 ms and vibration resistance is 1.5mm double amplitude 10~55Hz. Operating and storage temperature is -40°C to 85°C. Solderability is 260°C for 5s. Weight is 13g.

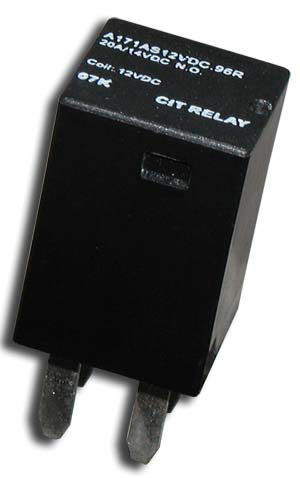

A17-CIT

The A17 Series relays are ideal for controlling lamps and motors, among other automotive applications. CIT Relay & Switch A17 Series

CIT Relay & Switch
www.citrelay.com
