Reaching new levels of take-up efficiency

By Mike Santora | November 23, 2020

Share
RD-10

The new RD10 rim drive shaftless take-up uses a roller drive system that fits in a smaller footprint while providing superior efficiency — Shown without guarding for clarity.

As demand for copper wire and other cable products grows, distributors continue to look for ways to improve efficiencies, reduce costs, and maximize space in their facilities.

In response to industry trends, Reel Power Industrial, a manufacturer of reel and coiling solutions, recently added a new rim drive shaftless take-up to its RD line. The units are typically used by wire and cable distribution facilities where large spools of copper wire are transferred down to smaller reels for contractor use.

RD10 reels are “rim driven,” allowing quick change out and loading of large wire and cable spools. The machine uses a geared motor to drive a roller, which rotates the cable reel as it coils. The geared motor’s output shaft is coupled, via chain and sprocket, to the drive roller. A smaller motor/gearbox drives two threaded rods, which then move the ejection roller up and down the frame. Maintaining a consistent winding torque through all speed ranges is critical to ensure proper spooling.

“For over 30 years, the RD line has been periodically updated to take advantage of innovative technology as it became available,” said Joe Crosley, Sr. Electrical Engineer at Reel Power Industrial. “Initially, RD Series take-offs were offered with a 20 hp mechanical variable drive system that provided high-torque but was cumbersome and expensive to maintain. Then, as VFD motors and controls became available, we upgraded but had to increase horsepower to maintain low-end torque.”

Omni RD3 cropped

RD10 reels are “rim driven” allowing for quick change-out and loading of large wire and cable spools.

The goal was to design a new roller drive system that would fit in a smaller footprint while providing better efficiency. The only way to meet the reduced size requirement was to use a more power-dense, right-angle geared motor versus the in-line drive used on previous versions of the machine.

After testing geared motors from different manufacturers, Reel Power selected the Bauer BK Series geared motor with a permanent magnet synchronous motor (PMSM) for the main reel roller drivetrain. The PMSM technology maintains consistent torque from 0 to 120 Hz and does not overheat at lower power as some other competitor models.

The RD unit requires a variable speed control to allow the operators to control the rewind process. “Older RD models accomplished this via mechanical variable speed drives with adjustable pulleys. Newer models used VFD drive controls with inverter-duty induction motors,” Crosley said. “However, switching to permanent magnet (PM) motors is not always a simple adjustment. After thoroughly testing many VFD controls, we found some drive manufacturers do not have adequate algorithms for PM motor control.”

BK40 Installed

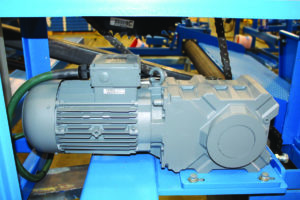

A Bauer BK Series geared motor drives a roller that rotates the large cable reel as it coils. The output shaft of the geared motor is coupled, via chain and sprocket, to the drive roller.

Once a VFD and a Bauer BK unit were selected that met the initial performance criteria, the RD10 was loaded with a 10,000 lb. reel and run for several hours, including stops and starts, to verify that the new geared motor could handle the load. Bauer engineers worked closely with the Reel Power engineering team to fine-tune the motor to meet
performance expectations.

The compact Model BK40 supplied features PMSM technology that reduces heat losses from the rotor by 100% and total losses by approximately 25% while increasing total efficiency by 10% or more. This improved performance translates into a lower total cost of ownership, a reduction in CO2 emissions, and ongoing savings that buffer future energy costs.

Along with being an economical choice, the size-to-power ratio of the Bauer solution was a key factor. “The implementation of the Bauer BK right angle, helical bevel geared motor package also allowed us to reduce the machine’s width from 137-in. to 101-3/4-in. — which is a huge win for our customers,” Crosley explained.

BK Series

The compact BK right angle, bevel geared motor featured permanent magnet synchronous motor (PMSM) technology that reduces heat losses from the rotor by 100% and total losses by approximately 25% while increasing total efficiency by 10% or more.

The new RD10 units provide smoother acceleration and deceleration with no “cable popping,” reducing the risk of damaging strands. A footswitch and central operator controls with handheld speed pendant allow the operator to wind material onto a reel or a coiling head. The footswitch can be “jogged” without tripping the drive — allowing easy packaging of the spooled material. Dynamic reel braking reduces “over spin.”

RD10 units generate lower ambient noise compared to mechanically driven units. A Boston Gear 700 Series speed reducer is used on the machine’s smaller ejection drive. The 700 Series is the industry standard for modular worm gear construction. Units feature a rugged fine-grained cast-iron housing for maximum strength and durability.
